Introductions
Heat Repair Wrap is made of fire-resistant synthetic adhesive coated to the fiberglass fabric.It is mainly used for repairing tubes in high temperature,automobile&motorcycle exhausters ,etc.with the function of rapid reinforcement,repair,protection and leakage stoppage.
Specification
Size | Accessories | |

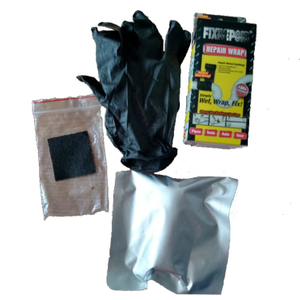

F01-100 | 2.5cm x100cm | Box,gloves,aluminum foil strip,sandpaper |
F01-300 | 2.5cm x300cm | |
F02-125 | 5cmx125cm | |
F02-150 | 5cmx150cm | |
F02-360 | 5.0cm x 360cm | |
F02-460 | 5cmx460cm | |
F04-150 | 10cmx150cm | |
F04-360 | 10.0cm x 360cm | |
F04-460 | 10cmx460cm |
Technical Data
Width | Programme | ||||
3-layer tubular compressive strength | Horizontal tensile strength | Impact toughness | Peeling strength | Working temperature | |
2.5cm | 150N | 595N | 40KJ/M2 | 30N | -45-450°C |
5cm | 360N | 1580N | 40KJ/M2 | 65N | -45-450°C |
10cm | 820N | 3260N | 40KJ/M2 | 141N | -45-450°C |
How to Use
1.Clean the repair area with sand paper and wear protective gloves .
3.Remove the roller of the tape from the vacuum bag and immerse it in water at room temperature for 2-5seconds.Press the tape roller out of excess water.
3.Wrap from the spot5-10cm from the defect.
4.General repair,wrap the 1/2 of the former one. For leakage stoppage,wrap7-8layers.
5.Fully wrapped,press the tape with wet hands smoothly to make it boned.And then tight the tape with wrapping the aluminum foil strip.
6.30minutes later ,take off the aluminum foil strip.Within 60minutes,bearing loads,12hours fully harden and completely finished.
7.Working temperature-45°C-450°C.
