| Color :Black: | |
|---|---|
| Material:fiberglass with resin: | |
| Quantity: | |
10cm x150cm
FIXREP@IR

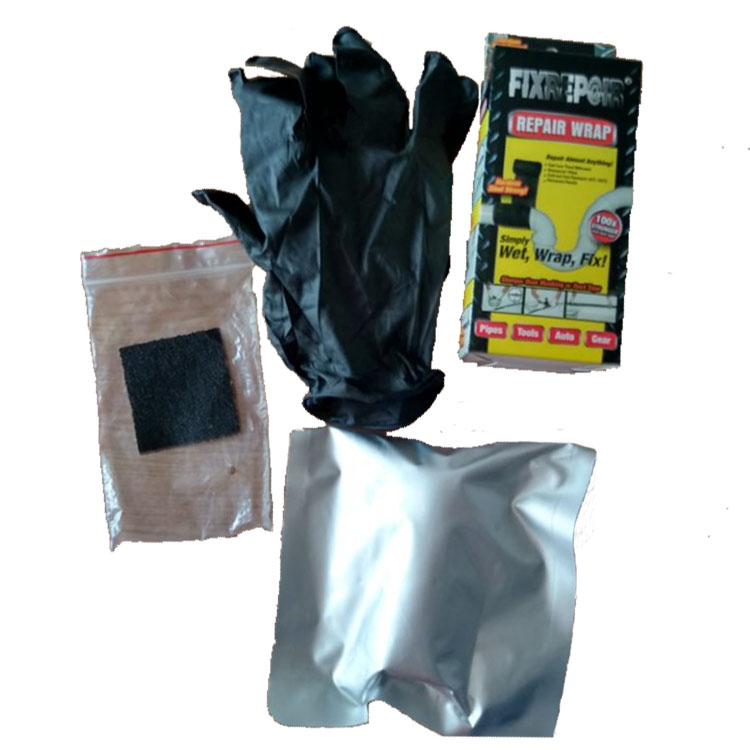

FIXREP@IR Repair Wrap mainly includes FIXREP@IR water activated tape ,gloves,sand paper and box.It can repair almost anything ! It has played an important role in the fields of repairing water pipes,gas pipes,oil tubes,plastics,PVC,aluminum ,metal,rubber ,electrical wires,auto ,tools,gear etc., In particular,It has become the necessary part in emergency repair and pipeline maintenance. The quality and the performance of the products have been proved excellent by some authoritative institutes and big customers.
FIXREP@IR water activated tape is made from flexible fiberglass knit fabric tape saturated with water-activated polyurethane. After being water-activated it can create a rigid structure with high ability of anti-bending and anti-elongation, and chemicals-resistance.
FIXREP@IR water activated tape is packed in aluminum foil pouch with nitrogen. It can be operated easily without requirement of extra equipment. The only step required is infusing water into the pouch and then wrapping it onto the cables or pipelines. The material will form a tough durable covering that sets in 20-30 minutes.
Features:
l Easy handling.
l Water-activated or can slowly cured in atmosphere.
l Non-toxic, non-irritative.
l Heat-resistance: up to 150°C.
l Bonds to rubber, PVC, polyester, metal, fiberglass and concrete.
l Sets in 20-30 minutes; sets under water.
l Resistant to water, most chemicals and fuels; Moisture Remaining Strength over 85%.
l Resistant to mechanical abrasion.
l Resistant to internal pressure up to 1000 kPa.
l Easily spread almost without tension.
l Nice bonding ability of ends (auto-adhere to previous layer).
l Packed in high quality foil pack.
l Shelf-time: 2 years from the date of manufacture.
l Structure of repairing tape :fiberglass,polyurethane resin.
Specification:
Specification | ||
Color | Centimetre | |
F02-127 | Black or White | 5cmx127cm |
Black or White | 5cmx150cm | |
F03-150 | Black or White | 7.5cmx150cm |
F04-150 | Black or White | 10cmx150cm |
Other size , length and color can be customize-made for you. | ||
Application Instruction:
1. Clean the repair area with abrasive material.
2. Wear protective gloves .
3. Remove the roller of the tape from the vacuum bag and immerse it in water at room temperature for 2-5seconds..
4. Press the tape roller out of excess water.
5. For pipeline leaking repairing,apply steel epoxy putty onto the leaking area .For other applications,no need steel epoxy putty.
6. Wrap the belt roller around the breakage/crack location in several layers(Wrap 4-8 layers. The number of layer is varied for different application),maintaining the tension.For more durable repairs,it is recommended to wind the tape also 5-7cm from the place of breakage in both directions.
7. Distribute impregnation evenly over the entire area of the tape hands pressing with effort.
8. Wait 8-10minutes till the tape is dry.
9. The tape reaches its maximum strength in 24hours.
It is allowed to grind and color the tape to give the place of repair esthetic appearance.
FIXREP@IR Repair Wrap mainly includes FIXREP@IR water activated tape ,gloves,sand paper and box.It can repair almost anything ! It has played an important role in the fields of repairing water pipes,gas pipes,oil tubes,plastics,PVC,aluminum ,metal,rubber ,electrical wires,auto ,tools,gear etc., In particular,It has become the necessary part in emergency repair and pipeline maintenance. The quality and the performance of the products have been proved excellent by some authoritative institutes and big customers.
FIXREP@IR water activated tape is made from flexible fiberglass knit fabric tape saturated with water-activated polyurethane. After being water-activated it can create a rigid structure with high ability of anti-bending and anti-elongation, and chemicals-resistance.
FIXREP@IR water activated tape is packed in aluminum foil pouch with nitrogen. It can be operated easily without requirement of extra equipment. The only step required is infusing water into the pouch and then wrapping it onto the cables or pipelines. The material will form a tough durable covering that sets in 20-30 minutes.
Features:
l Easy handling.
l Water-activated or can slowly cured in atmosphere.
l Non-toxic, non-irritative.
l Heat-resistance: up to 150°C.
l Bonds to rubber, PVC, polyester, metal, fiberglass and concrete.
l Sets in 20-30 minutes; sets under water.
l Resistant to water, most chemicals and fuels; Moisture Remaining Strength over 85%.
l Resistant to mechanical abrasion.
l Resistant to internal pressure up to 1000 kPa.
l Easily spread almost without tension.
l Nice bonding ability of ends (auto-adhere to previous layer).
l Packed in high quality foil pack.
l Shelf-time: 2 years from the date of manufacture.
l Structure of repairing tape :fiberglass,polyurethane resin.
Specification:
Specification | ||
Color | Centimetre | |
F02-127 | Black or White | 5cmx127cm |
Black or White | 5cmx150cm | |
F03-150 | Black or White | 7.5cmx150cm |
F04-150 | Black or White | 10cmx150cm |
Other size , length and color can be customize-made for you. | ||
Application Instruction:
1. Clean the repair area with abrasive material.
2. Wear protective gloves .
3. Remove the roller of the tape from the vacuum bag and immerse it in water at room temperature for 2-5seconds..
4. Press the tape roller out of excess water.
5. For pipeline leaking repairing,apply steel epoxy putty onto the leaking area .For other applications,no need steel epoxy putty.
6. Wrap the belt roller around the breakage/crack location in several layers(Wrap 4-8 layers. The number of layer is varied for different application),maintaining the tension.For more durable repairs,it is recommended to wind the tape also 5-7cm from the place of breakage in both directions.
7. Distribute impregnation evenly over the entire area of the tape hands pressing with effort.
8. Wait 8-10minutes till the tape is dry.
9. The tape reaches its maximum strength in 24hours.
It is allowed to grind and color the tape to give the place of repair esthetic appearance.
